Through special software of Image Analysis, non-contact length measurement machine
Possible to check outline shape or surface, geometry

Taking advantage of the strengths of “Made in Japan”, we/SK will guarantee long dimension measurement based on a machine-precision.
We/SK will respect image processing technology that enables correspondence to next generation.

• Good usability by Easy Operation & wide stroke
• Source of LED light of the reflction (ring-shape) and the transmission
• Improvement of lens performance
• High-rigidity body design provide improvement of accuracy
• Possible to check outline shape like cracking or chipping
• Including the image analysis software, can be customized up to mechanical structure

[Option]

Application reference

1. PCB Circuit boad measurement (Width, length, height, pitches, hole diameter...)
2. Printing board or screening board measurement
3. Currency Note, Coin measurement
4. Measurement of attachment, tools of various industries
5. Measurement of plastic processed goods
6. Measurement of mold or gear
7. Measurement of leather materials
8. Measurement of display panel
9. Measurement of film
10. Measurement of Screen Mask
11. Measurement of 3D anlaysis

Specifications

Effective measurement area (XxYxZ)	700 x 900 x 60 mm
Maximum measurement table size (XxYxZ)	1000 x 1250 x 60 mm
Maximum measurement thickness	60 mm
Minimum detectable unit	0.1μm
Measurement accuracy (X,Y)	(U1)3+L/250μm, (U2)4+L/230μm
Measurement accuracy (Z)	1.5+4L/1000μm
Repeatability (X,Y)	3σ=0.9μm
Maximum drive speed (X,Y)	200mm/sec
Light method	Ring Light / Transparent Light / Coaxial Light
Magnification	1 x 2 x 3 x 4 x 8 or 2 x 4 x 6 x 8 x 16 (Initial setting selection)
Position detector	Non-contact optical liner scale
Language	Japanese/English/Chinese * Needs to select
Power Supply	1φ200_230 V 0.4kw(2.0A) 50/60Hz
Dimension	Main body: 1360mm(W) x 1673mm(D) x 1371mm(H), PC rack:700mm(W) x 500mm(D) x 1200mm(H)
Main body weight	1250kg

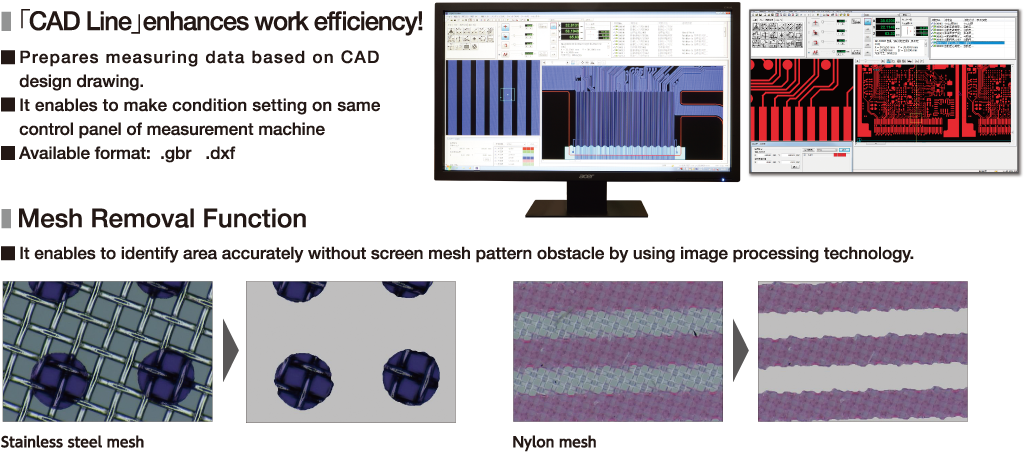

Option	CAD Line/3D measurement function / Mesh Removal function / Pass; Fail judgement function
